ANSI · DIN · ISO
The Akay Industries non-API range: ANSI process pumps, DIN industrial water pumps, ISO chemical pumps and high-capacity vertical turbines.
ANSI B73.1

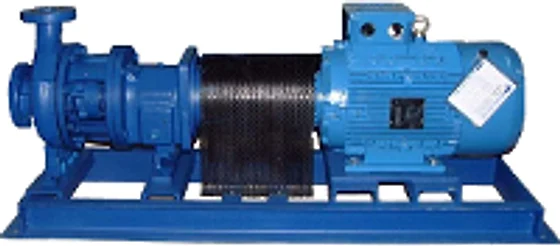

ANSI process pump with a minimal spares inventory; the rotating element can be inspected without disturbing wiring or piping. LF (low-flow) and SP (self-priming) variants.
Chemicals, petrochemicals, refineries, coal, power plants.
| Flow | ≤ 1 500 m³/h |
| Head | ≤ 250 m |
| Pressure | 2–2,5 MPa |
| Temperature | −40…180 °C |
| Standard | ANSI B73.1 |
DIN 24255

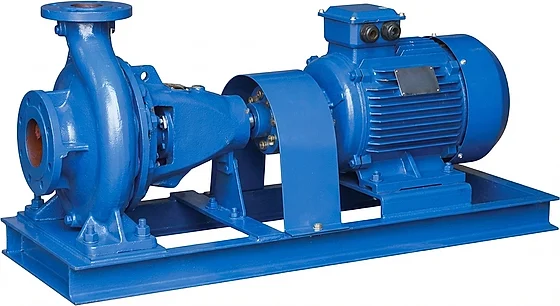

Single-stage horizontal pump with back pull-out design for quick maintenance; steel baseplate reinforced with profiled bar.
Clean water, industrial plants, mining, water supply, air conditioning, fire fighting, irrigation.
| Flow | 2–1 100 m³/h |
| Head | 2–150 m |
| Pressure | 1–1,6 MPa |
| Temperature | −10…105 °C |
| Standard | DIN 24255 |
DIN 24255

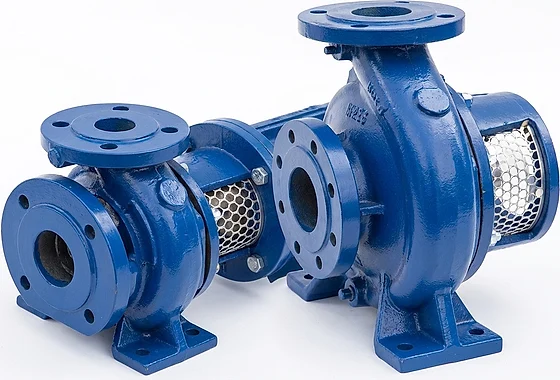

Close-coupled variant with back pull-out access; extra bearing on the drive support, interchangeable components.
Same applications as the WF model.
| Flow | 2–290 m³/h |
| Head | 5–130 m |
| Pressure | ≤ 1 MPa |
| Temperature | −10…105 °C |
| Standard | DIN 24255 |
BS EN 733 / DIN 24255

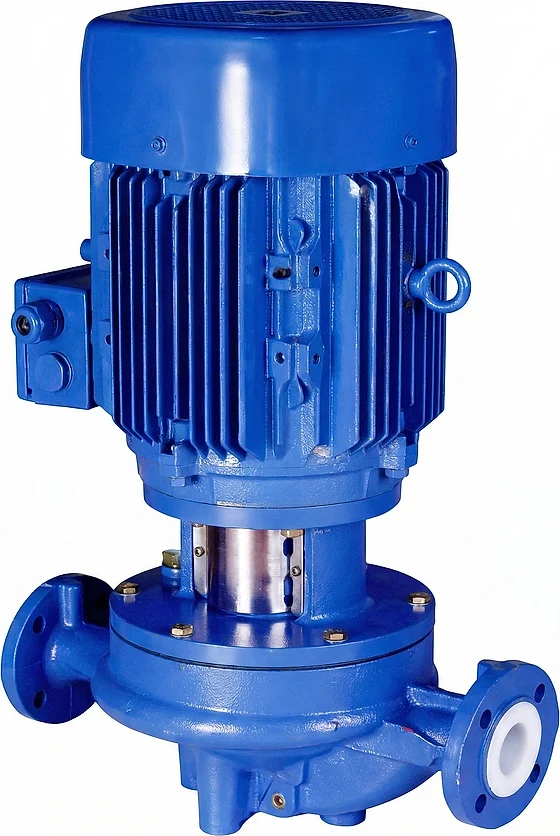

Vertical in-line single-stage centrifugal pump with trimmable impeller and compact design.
Industrial water applications.
| Flow | 2–450 m³/h |
| Head | 2–150 m |
| Pressure | ≤ 1,6 MPa |
| Temperature | −10…105 °C |
| Standard | BS EN 733 / DIN 24255 |
ISO 2858 / 5199

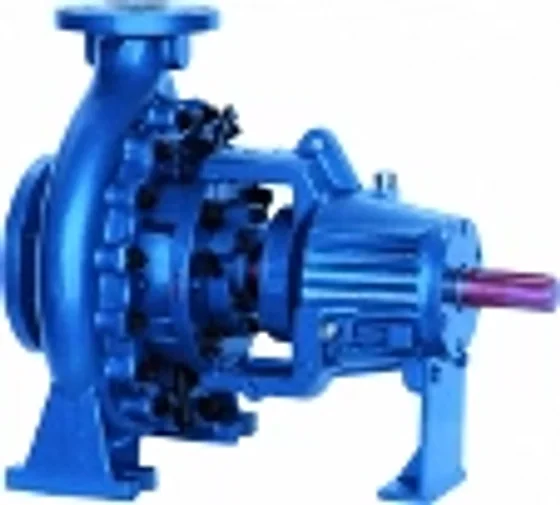

Foot-mounted chemical pump, easy to install and maintain.
Clean or particle-laden liquids, corrosive, flammable or toxic media in chemicals, petrochemicals, refineries.
| Flow | 2–2 000 m³/h |
| Head | ≤ 160 m |
| Pressure | ≤ 2,5 MPa |
| Temperature | −40…150 °C |
| Standard | ISO 2858 / 5199 |
ISO / DIN / BS / ANSI

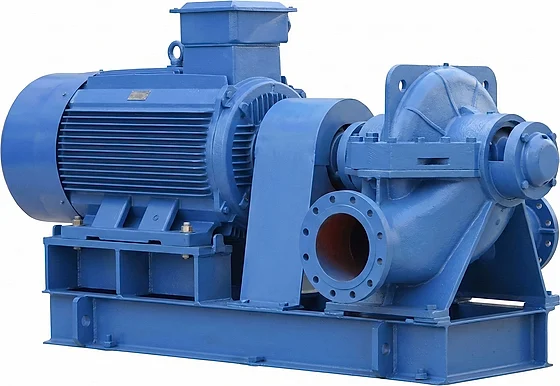

Axially split casing — the complete rotor is removable without disturbing piping or motor; minimal axial thrust, fully sealed.
Irrigation, wastewater stations, power plants, industrial water systems, fire fighting.
| Flow | ≤ 18 000 m³/h |
| Head | ≤ 200 m |
| Pressure | ≤ 3 MPa |
| Temperature | ≤ 105 °C |
| Standard | ISO / DIN / BS / ANSI |

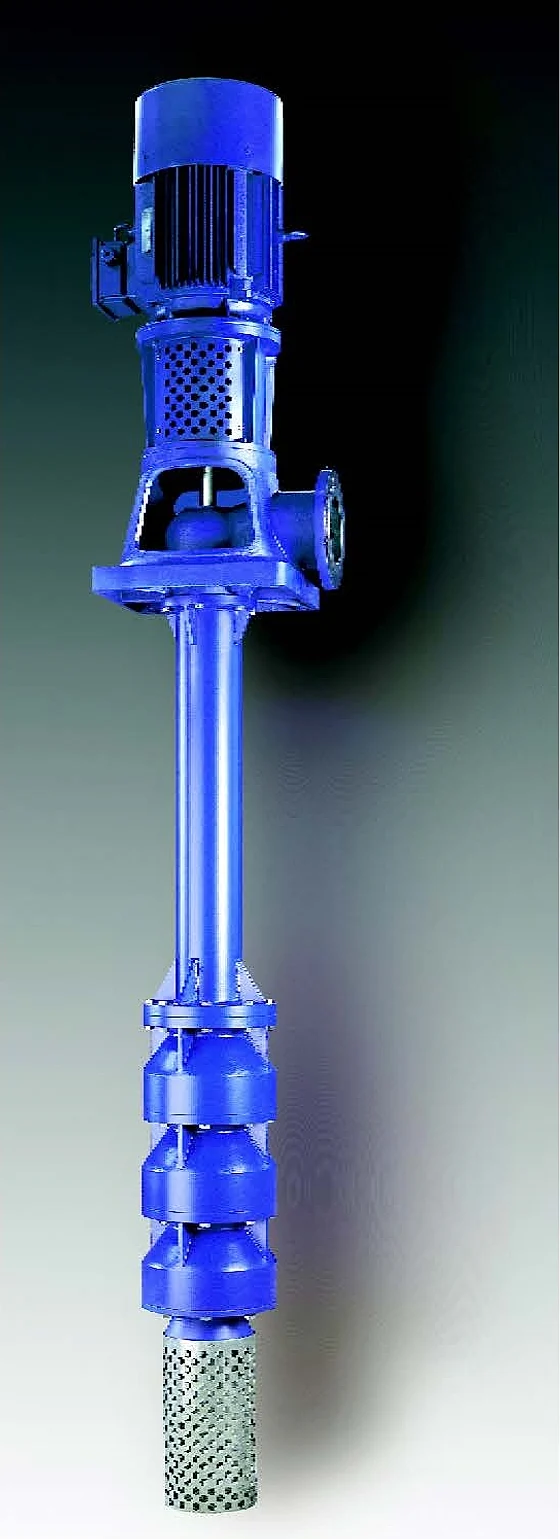

Turbină verticală

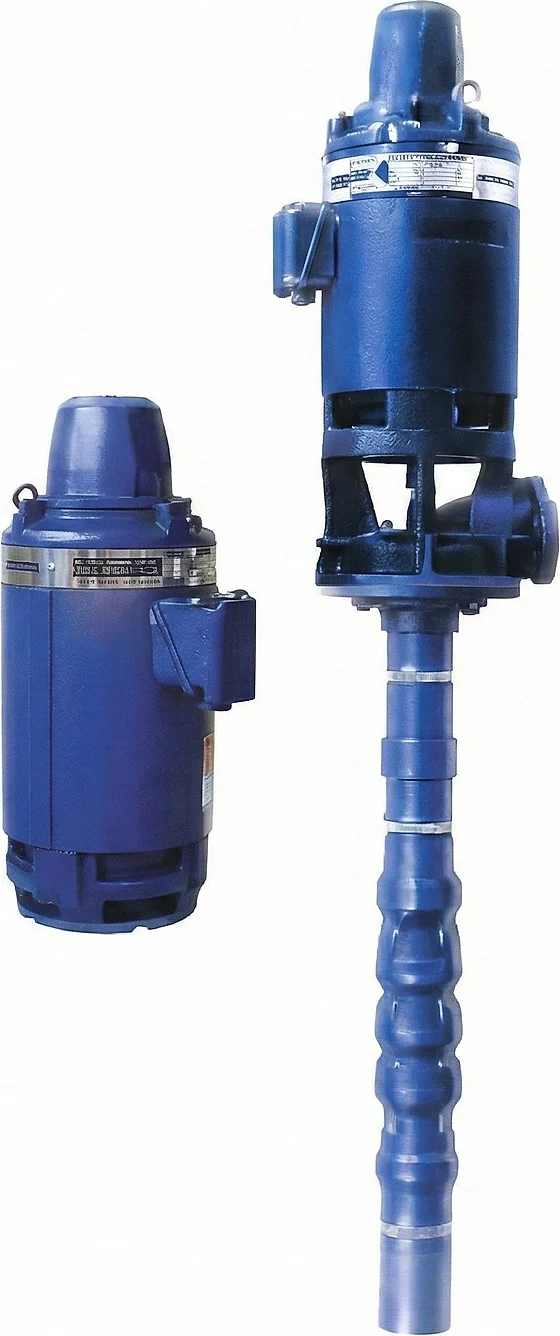

Single- or multi-stage industrial turbine pump with closed or mixed-flow impeller for high-pressure service.
Cooling water, seawater, process pumping, condensate circulation, ash water, fire services.
| Flow | ≤ 4 000 m³/h |
| Head | ≤ 380 m |
| Temperature | ≤ 200 °C |
| Standard | Turbină verticală |
Turbină verticală

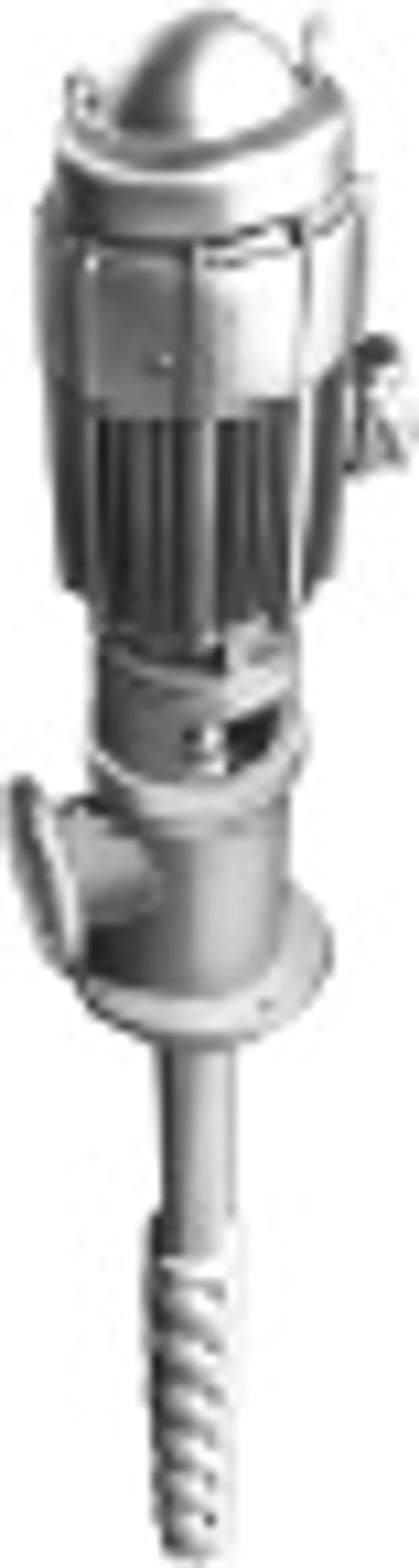

High-capacity single-stage vertical pump, alloy construction for abrasive environments.
Cooling and seawater, industrial processes, irrigation.
| Flow | ≤ 25 000 m³/h |
| Head | ≤ 70 m |
| Standard | Turbină verticală |
Turbină verticală
Axial impeller for high-capacity, low-head service; corrosion- and abrasion-resistant materials.
Pollution control, effluent removal, flood control, river intake, irrigation, drainage.
| Flow | ≤ 20 000 m³/h |
| Head | ≤ 12 m |
| Standard | Turbină verticală |
