API 610 · ISO 13709
Petrochemical process pumps built to the API 610 standard, in every construction type: overhung (OH), between-bearings (BB) and vertically suspended (VS) — for refineries, petrochemicals and severe-duty applications.
API 610
Petrochemical process pump with a rigid casing-cover design, foot mounted.
Clean or particle-laden liquids in petrochemicals, coal, power plants, HVAC, desalination.
| Flow | 2–2 600 m³/h |
| Head | ≤ 250 m |
| Pressure | ≤ 2,5 MPa |
| Temperature | −80…450 °C |
| Standard | API 610 |

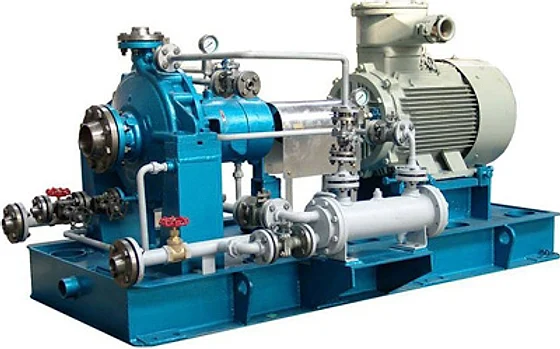

API 610
Centerline-mounted process pump with an independent pressure chamber for extended petrochemical duties.
Clean or particle-laden liquids, slurries, fibres and viscous fluids in refineries, chemical fibres, marine industry.
| Flow | 2–2 600 m³/h |
| Head | ≤ 300 m |
| Pressure | 5 / 10 MPa |
| Temperature | −80…450 °C |
| Standard | API 610 |
API 610
Low-flow chemical process pump derived from the APIFLO-OH2.
Same applications as the OH2, for reduced-flow scenarios.
| Flow | 0,8–12,5 m³/h |
| Head | 12–125 m |
| Pressure | ≤ 2,5 MPa |
| Temperature | −80…450 °C |
| Standard | API 610 |

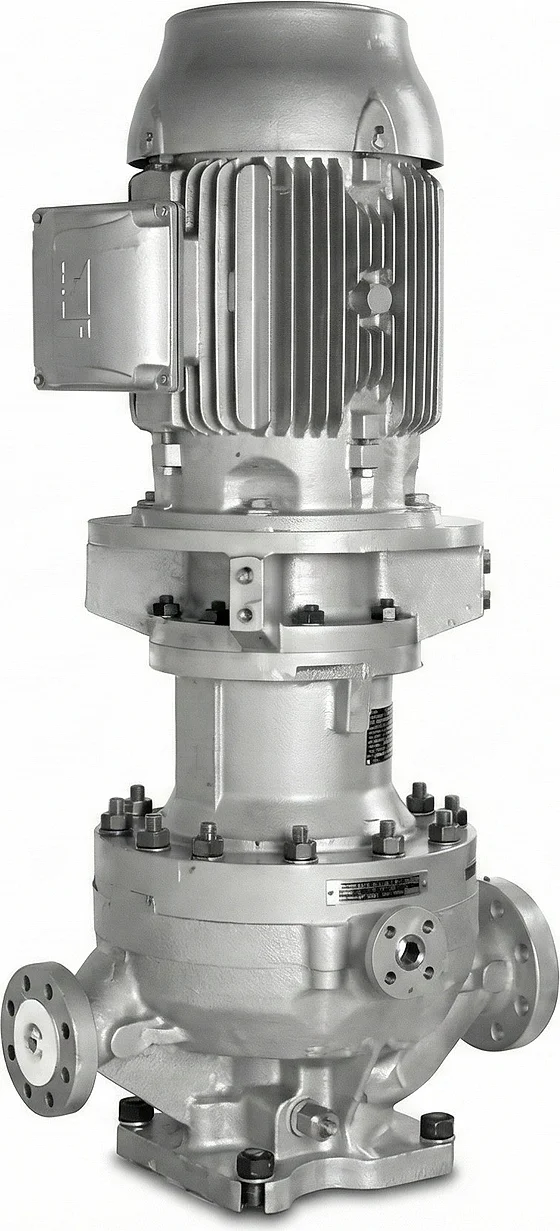

API 610
Vertical in-line pump, centerline mounted.
Petrochemical processes where footprint is critical.
| Flow | 2–2 600 m³/h |
| Head | ≤ 300 m |
| Pressure | ≤ 5 MPa |
| Temperature | −80…450 °C |
| Standard | API 610 |
API 610

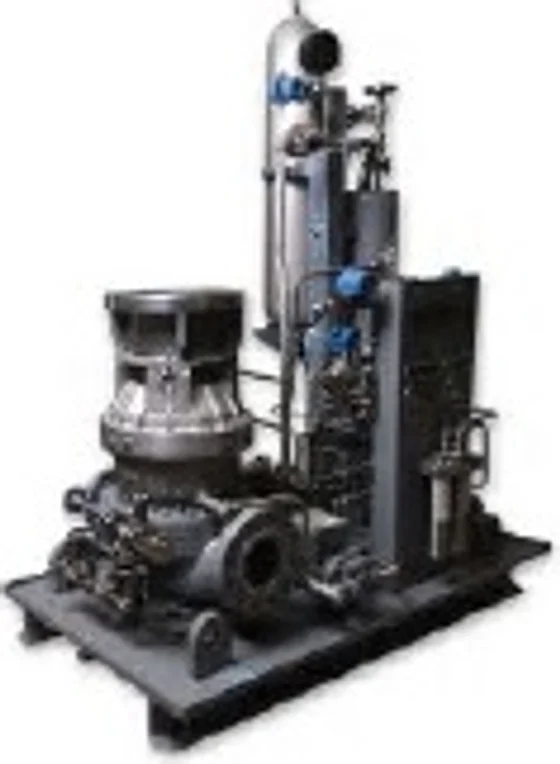

High-speed integrally geared pump in vertical or horizontal configuration.
Clean or corrosive media with viscosity below 500 cP.
| Flow | 2–250 m³/h |
| Head | 100–2 500 m |
| Pressure | 15 / 22,5 MPa |
| Temperature | −50…300 °C |
| Standard | API 610 |

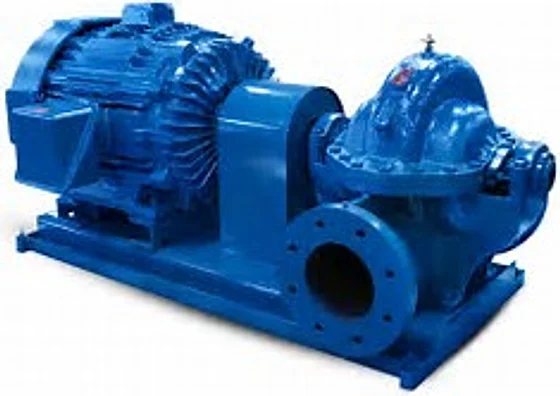

API 610
Horizontal between-bearings centrifugal pump with axially split casing, single or two stages; rigid shaft for stable operation.
Petrochemicals, power and thermal plants, pipe-network pressurisation.
| Flow | 10–18 000 m³/h |
| Head | ≤ 440 m |
| Pressure | 2,5 / 5 MPa |
| Temperature | −40…200 °C |
| Standard | API 610 |
API 610

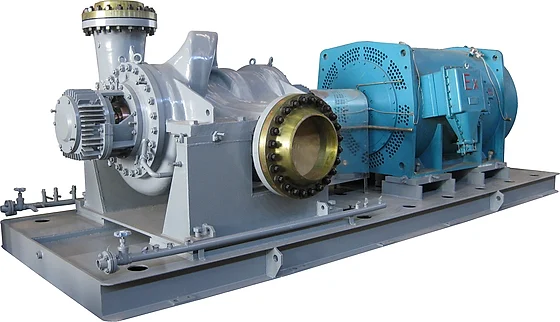

Radially split, double-volute between-bearings pump with 1–3 stages; reliable inter-stage bushings reduce leakage.
Refineries, petrochemicals, natural gas, offshore platforms, desalination — including high pressures and temperatures.
| Flow | 5–5 000 m³/h |
| Head | ≤ 700 m |
| Pressure | 5 / 15 MPa |
| Temperature | −80…450 °C |
| Standard | API 610 |

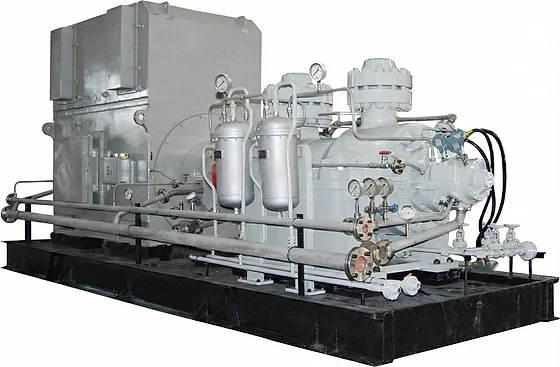

API 610
Multistage volute pump, centerline supported, with symmetrically arranged impellers; dismantling without disturbing pipelines.
Pipeline transport, boiler feed water, water injection, desalination, decoking pumps for steel mills.
| Flow | 10–1 500 m³/h |
| Head | ≤ 3 000 m |
| Pressure | ≤ 25 MPa |
| Temperature | −20…400 °C |
| Standard | API 610 |

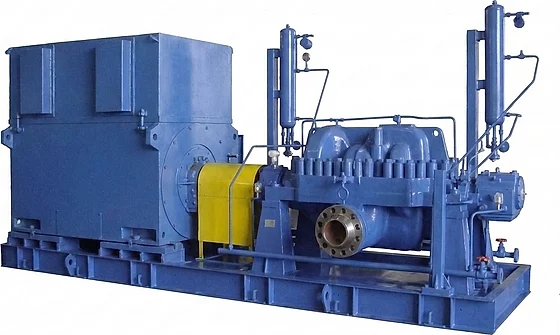

API 610
Single-casing ring-section multistage pump; back-to-back or inline impeller arrangements, self or forced lubrication.
Crude oil transport, boiler feed water, hydrotreating feed pumps in hydrogenation refineries.
| Flow | 5–730 m³/h |
| Head | ≤ 2 800 m |
| Pressure | ≤ 27 MPa |
| Temperature | −80…210 °C |
| Standard | API 610 |

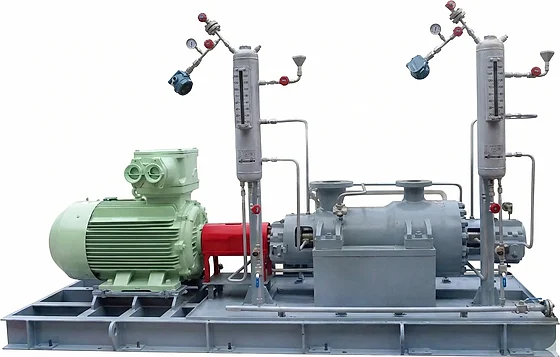

API 610
Double-casing multistage pump, centerline mounted; the inner core pulls out completely without dismantling pipelines.
High-pressure ash water, rich/lean amine solutions in fertiliser and ammonia plants, desalination, recovery turbines.
| Flow | 5–730 m³/h |
| Head | ≤ 3 400 m |
| Pressure | ≤ 35 MPa |
| Temperature | −80…450 °C |
| Standard | API 610 |

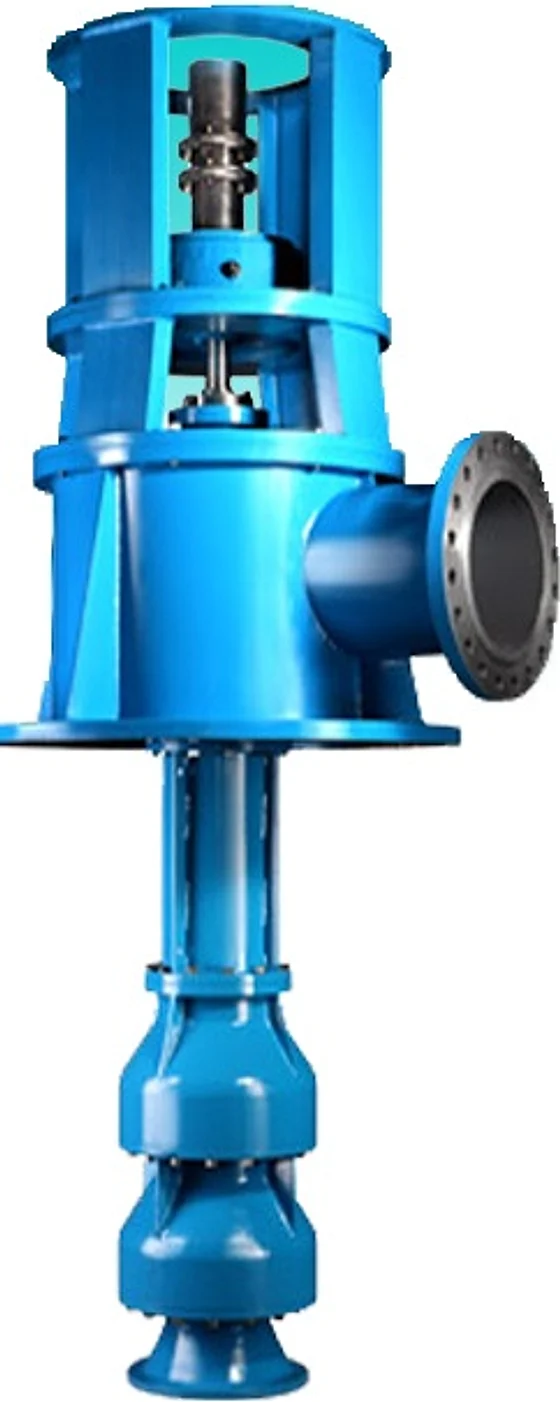

API 610 / ISO 5199
Vertically suspended pumps with integral or connecting shafts depending on installation depth; interfaces for bearing temperature and vibration monitoring.
Very high capacities: water intake, circulation, process services with high heads.
| Flow | ≤ 60 000 m³/h |
| Head | ≤ 500 m |
| Pressure | ≤ 10 MPa |
| Temperature | −80…250 °C |
| Standard | API 610 / ISO 5199 |

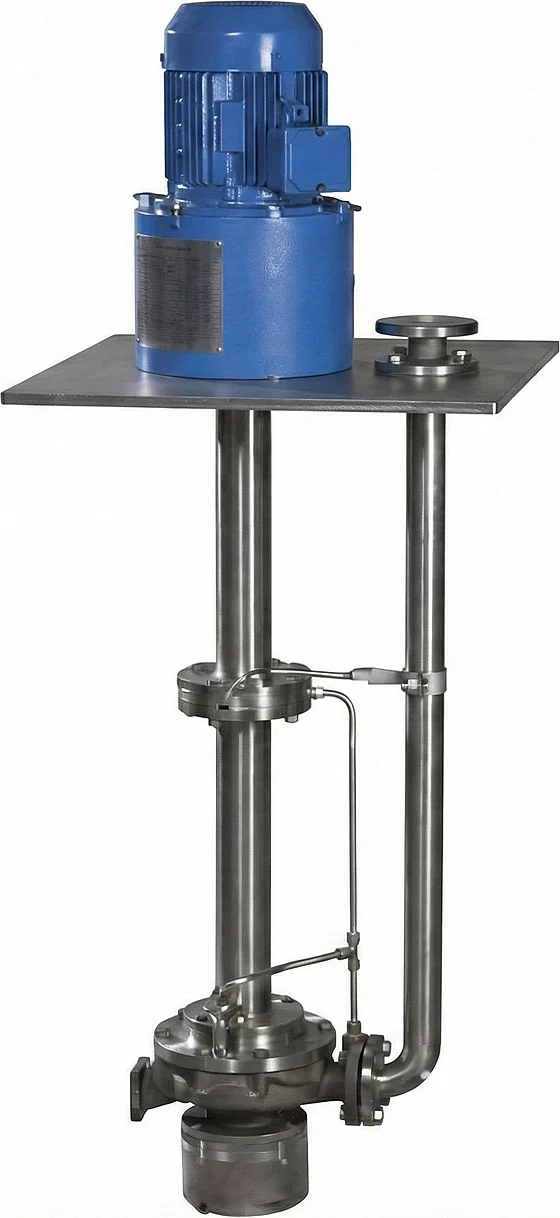

API 610 / ISO 2858
Long-shaft sump pumps with multi-point shaft support; side discharge, no medium pressure on the support pipe and seal.
Refineries, petrochemicals, power stations, wastewater treatment, cement plants.
| Flow | 2–900 m³/h |
| Head | ≤ 135 m |
| Pressure | ≤ 1,6 MPa |
| Temperature | −20…125 °C |
| Standard | API 610 / ISO 2858 |
API 610

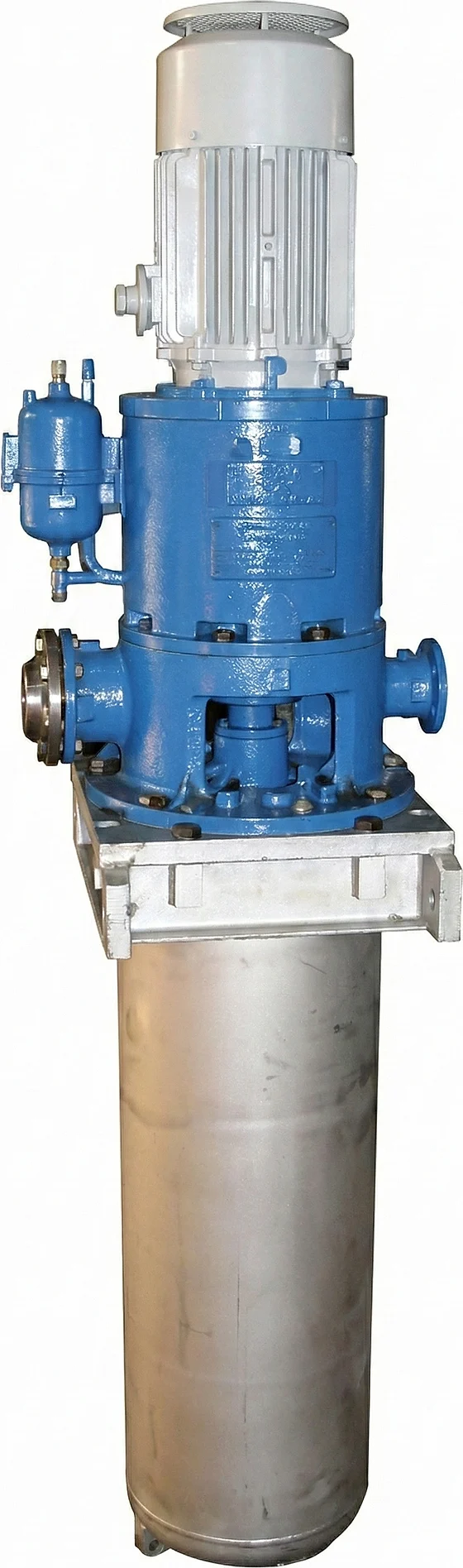

Double-casing multistage vertically suspended pump; hydraulic model with high stability and efficiency.
Pipeline pressure regulation, condensate service, seawater lifting, offshore platforms, water supply and drainage.
| Flow | ≤ 700 m³/h |
| Head | ≤ 1 500 m |
| Pressure | ≤ 15 MPa |
| Temperature | −80…250 °C |
| Standard | API 610 |
