A varied range
Magnetic-drive pumps for hazardous media, energy-recovery hydraulic turbines and a complete line of NFPA 20, UL and FM certified fire pumps.
API 685

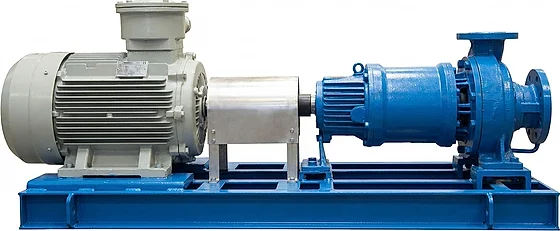

Magnetic-drive pump, horizontal, single stage with radial suction — no dynamic seal in the containment chamber.
Flammable, explosive, toxic or high-value media in chemicals, petroleum, coal, dyeing, bio-engineering.
| Flow | ≤ 700 m³/h |
| Head | ≤ 300 m |
| Pressure | ≤ 5 MPa |
| Temperature | −20…220 °C |
| Standard | API 685 |
API 610

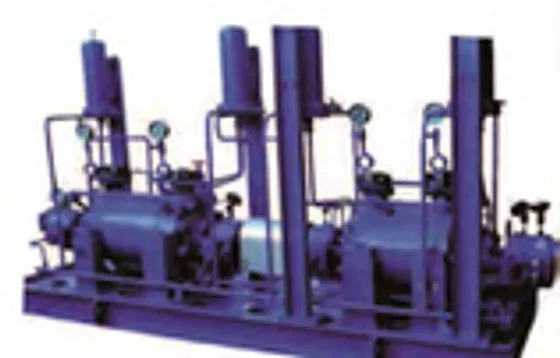

Energy-recovery hydraulic turbine available in multiple structural types: OH, BB, VS.
Energy-recovery units, hydrocracking, ammonia and urea plants, desalination systems.
| Flow | 5–12 000 m³/h |
| Head | ≤ 3 000 m |
| Pressure | ≤ 35 MPa |
| Temperature | −80…450 °C |
| Standard | API 610 |
NFPA 20ULFM

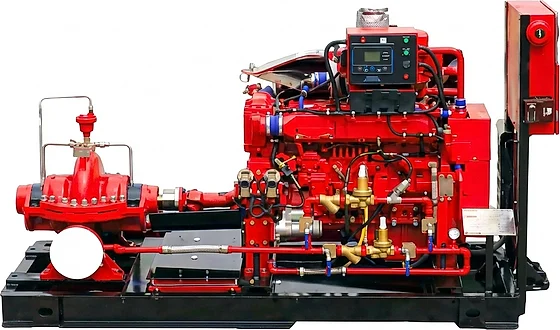

Single stage, double suction; electric or diesel drivers, air or water cooled; seawater-compatible materials.
Commercial and residential buildings, railway stations, fuel depots, petrochemical plants, power stations.
| Flow | 68–1 817 m³/h |
| Head | 40–204 m |
| Standard | NFPA 20 · UL · FM |
NFPA 20ULFM

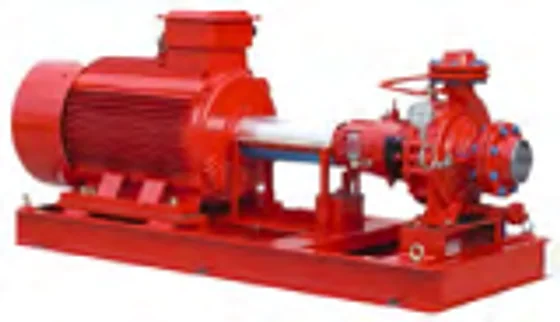

Compact end-suction fire pump; electric or diesel drivers.
Same applications as the split-case variant.
| Flow | 22–511 m³/h |
| Head | 42–162 m |
| Standard | NFPA 20 · UL · FM |
NFPA 20ULFM
Vertical turbine for lift from underground reservoirs or sumps.
Same applications as the other fire pump types.
| Flow | 56–1 136 m³/h |
| Head | 56–211 m |
| Standard | NFPA 20 · UL · FM |
NFPA 20
In-line fire pump with minimal footprint; multiple driver options.
Steel mills alongside standard industrial facilities.
| Flow | 22–227 m³/h |
| Head | 70–155 m |
| Standard | NFPA 20 |
Contact
Tell us about your application and we will recommend the right equipment.
